A. Adopted low consumption CPU
B. Adopted unique Mutil codes
C. Auto status report
D. Anti-lost report
E. Open door/window indication

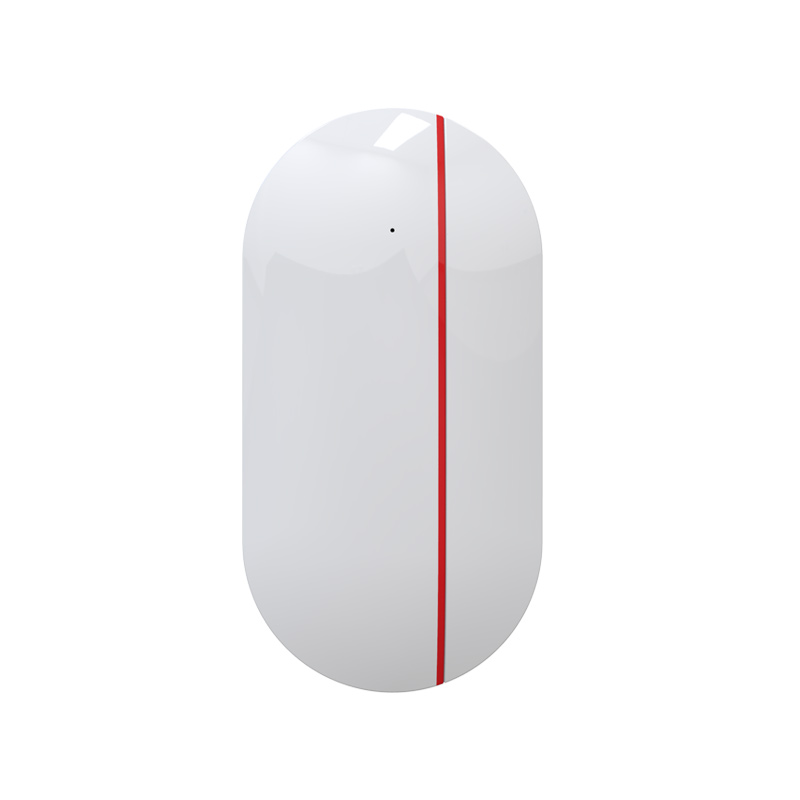

Model:MD-221R
①Wireless sending distance(open area):inset antenna 150m.
②Code: 28-digi t ID, 8-digit function code, 36 digits data code in total
③Working frequency: 433MHz/868MHz(optional)
④Working voltage:3V CR2032
⑤Battery life: about 1 year
⑥Current: static ≤5uA, alarm≤7-12mA(433MHz), static ≤5uA, alarm≤15-25mA (868MHz)
⑦ Alarm output: alarm, tamper
⑧Status report：after fist electro motion or reset the
detector the magnetic switch report the working status
to the control panel separately after 1 minutes,6minutes.
And report working status every two hours to the
control panel.
⑨Working Temeprature:-10℃~50℃
