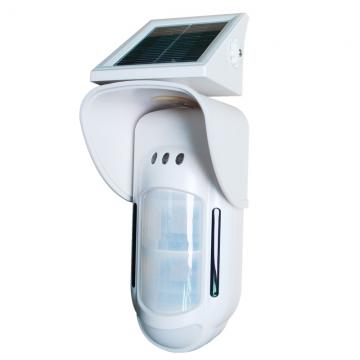

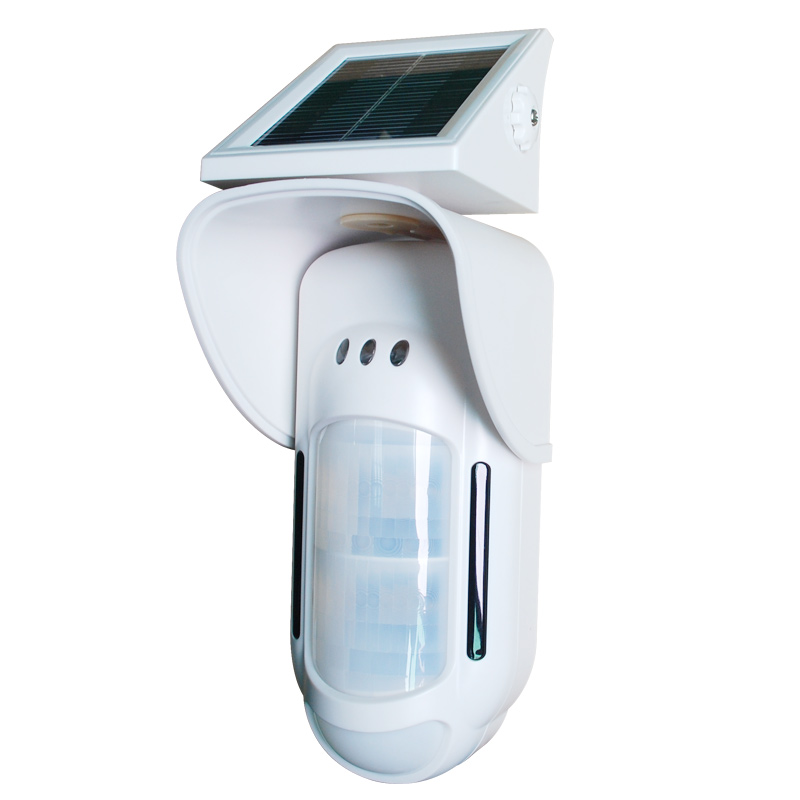

wireless solor dual infrared & MW outdoor detector


LOADING IMAGES
Model:FT-89RS
Introduction:
FT-89RS is the best indoor/outdoor motion detector with passive infrared and microwave.It's water proof and all weather resistant with two layer stable housings..FT-89RS combines a variety of detection techniques whichenable it to work in the most difficult environment where needs high security while maintaining immunity to false alarm.The infrared sensor adopts nice lens produce three-dimensinal thermal imaging of the protected area .Combinging the four-element microwave scanning contributes to an amazing detection capacity.Using this technique allows high sen
◎ Solor Quad PIR with digital correlation technology and 2 MW with sway recognition technology.
◎ Adopts self-designed MASK with DMT technology.
◎ Digital pulse count adjustable, Auto temperature compensation and energy analysis.
◎ Wall, pole and barrier mountable with wide range rotation design.
◎ Weatherproof design, IP65 environmental rating.
◎ Excellent false alarm prevention with look-down window to avoid blind-corner.
◎ MW Anti-Collision feature that enables detectors to be installed adjacently or face.
External powered DC12V
Static current consumption:≤18mA
Alarm current consumption:≤30mA
When powered,the green LED light for 3
seconds and flicker 2 seconds and off
the red LED flicker about isseconds,after
3 minutes,the detector comes into work
states.
Alarm mode:Red LED light about 3S
Relay output:NC
Wireless transmitting distance:150m
Transmitting frequency:433MHz/868MHz
The max recharge caurrent:≤120mA
Detection range:12m(25℃)
