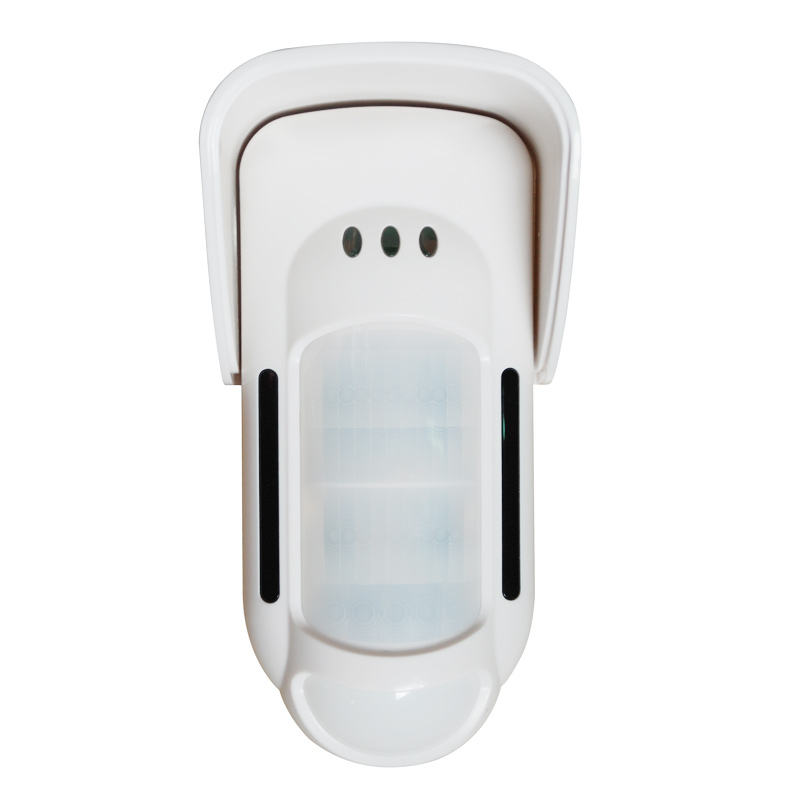

◎ Quad PIR with digital correlation technology and 2 MW with sway recognition technology;
◎ Adopts self-designed MASK chip with DMT technology;
◎ With look-down window to avoid blind-corner and Weatherproof design, IP65 environmental rating;
◎ MW Anti-Collision feature that enables detectors to be installed adjacently or face-to-face without interference;
◎ Detection distance:9m/12m/18m
◎ Detection angle:30°/90°/120°
External powered DC12V
Static current consumption:≤18mA
Alarm current consumption:≤30mA
When powered,the green LED light for 3
seconds and flicker 2 seconds and off
the red LED flicker about isseconds,after
3 minutes,the detector comes into work
states.
Alarm mode:Red LED light about 3S
Relay output:NC
Wireless transmitting distance:150m
Transmitting frequency:433MHz/868MHz
The max recharge caurrent:≤120mA
Detection range:12m(25℃)
