Wireless digital PIR detector


LOADING IMAGES

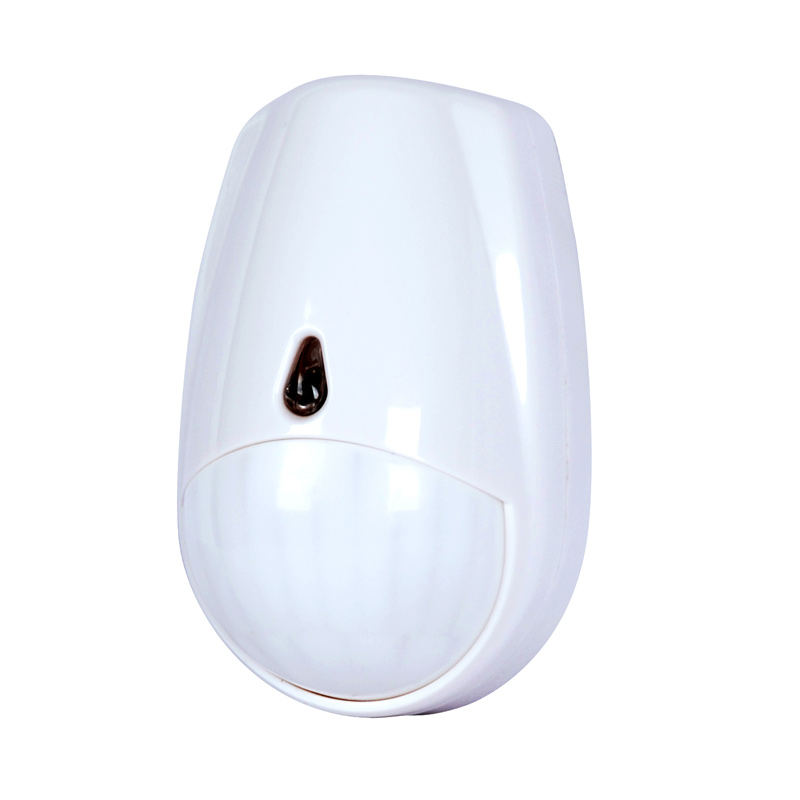

Model:MC-335R
Introduction:
The MC-335R is a PIR technology intruder detector designed to detect human body movement in a protected area. Digital processing ensures a high immunity to false alarms and outstanding stability. The MC-335R uses a sophisticated radio communication protocol with a high level of data safety. The detector makes regular auto testing and reports its conditions regularly to the system for full supervision. Built-in tamper switch trigger an alarm if there is any attempt to tamper with the detector. An automatic testing mode makes testing an ease.
◎ Anti-white light with spherical lens and sealed optical design;
◎ Low power consumption, built-in big capacity batteries;
◎ Detection distance:12m@25℃
◎ Detection angle:110°
detection method:PIR
power supply: 3 VDC lithium
battery life: about 1 year
alarm indication:4~5s
start up time: 30s with LED indication
transmit range: max. 150-200 m (open area)
white light protection:4000 lux
transmit freguency: 433MHz
detection rage: 6m
environmental:-10C to +40C
demision:110*95*49mm
