◎ Anti-white light with spherical lens and sealed optical design；
◎ Low power consumption, built-in big capacity batteries；
◎ Detection distance：12m@25℃
◎ Detection angle：110°

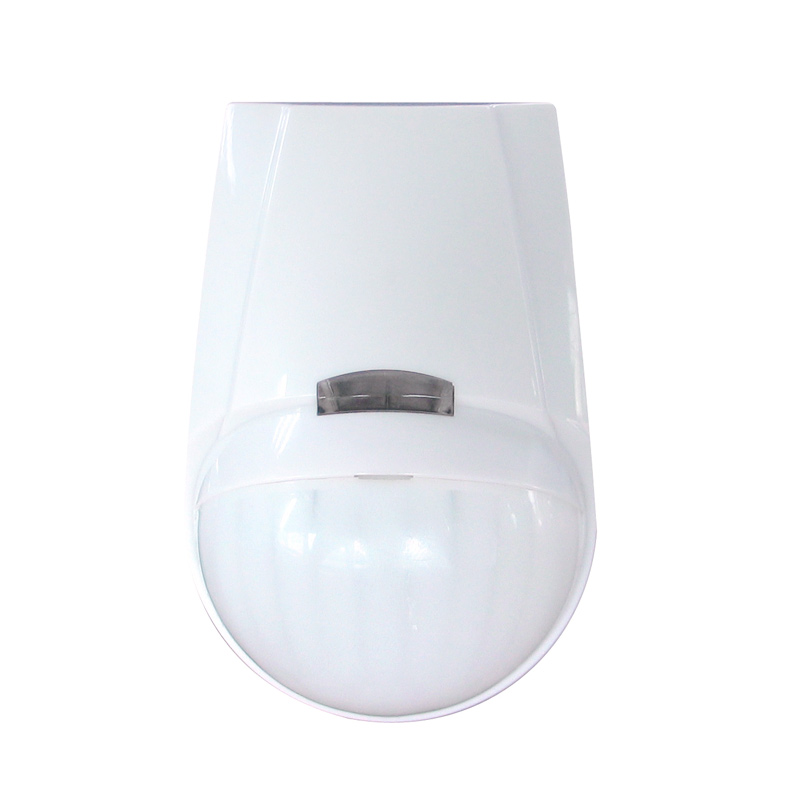

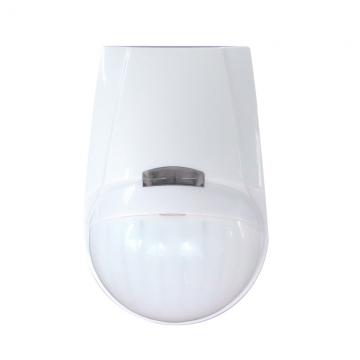

Model: MC-355R(DMT)
Detection range: 9m(25℃)
Transmit range: 120m-150m (openarea)
Power supply: 3 VDC lithium battery
Current consumption：
Static≤30μA，Alarm≤20mA（433MHz）
Static≤30μA，Alarm≤50mA（868MHz）
Battery life: about 1 year
Infrared part e.g right picture
Max coverage area: 9m*12m(23*46 inches)/90°
Transmit frequency: 433MHz/868MHz
Alarm indication: LED lights for several seconds
Installation:
Installation height from 2.0 to 2.5m
Allow an 45°angle between wall
bracket optional
Environment:
Work environment:-10℃ to +50℃ (14℉ - 122℉）
Storage environment:-20°C to +60℃ (-4℉ - 140℉)
White light protection( inner): >9000LUX
Dimension: 95*64*49mm
