◎ Reliable detection performance with quad PIR technology；
◎ Excellent false alarm prevention with look-down window to avoid blind-corner；
◎ Detection distance：9m@25℃
◎ Detection angle：110°

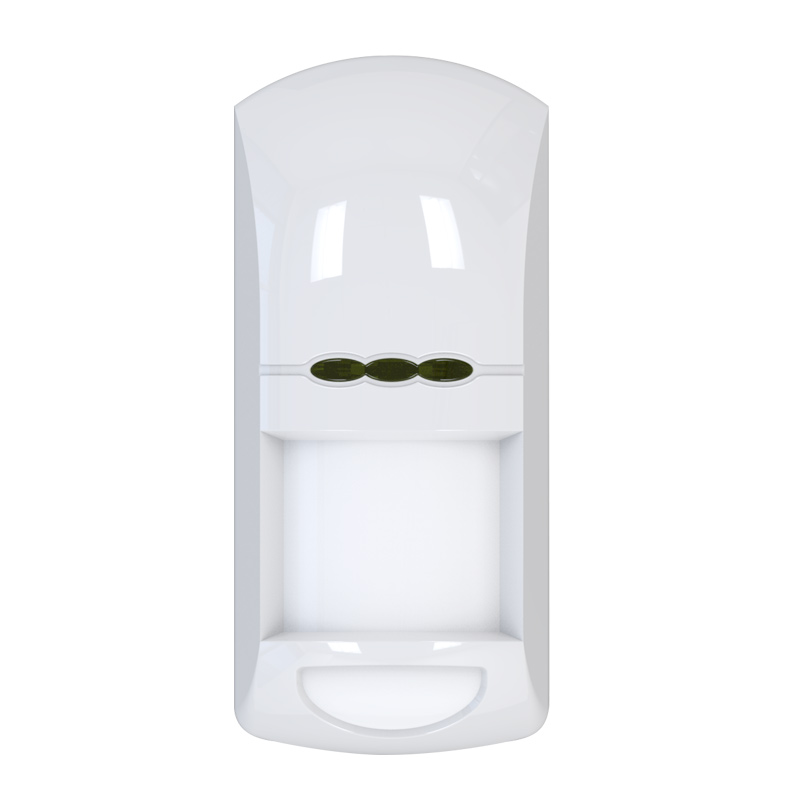

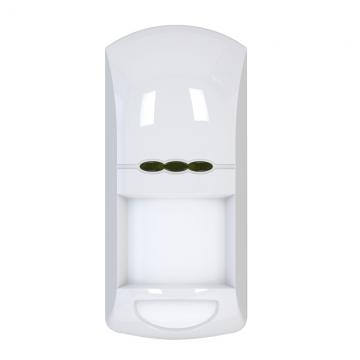

Model：MC-8250R DMT
Detection range：9m（25℃）
Emitting distance：120-150m（in the open area）
Input voltage：3VDC（model CR123A lithium battery）
quiescent current：≤30μA
emitting current：≤15mA
infrared area(as shown )
Optical lens data
detection angle：1100
emitting frequency：433MHz/868MHz
Alarm indication：LED flashes 2 seconds.
Mounting:
Surface or corner, at the height of 1.8 to 2.4m(6-8feet)
Note: Base allows single-sided corner mount at 450 to wall
operation condition：
Operating Temperature: -100C to- 500C(140F to 1220F )
Storage Temperature :-200C to -600C (-40F to 400F)
Anti white light interference: 9000 LUX (indoor)
