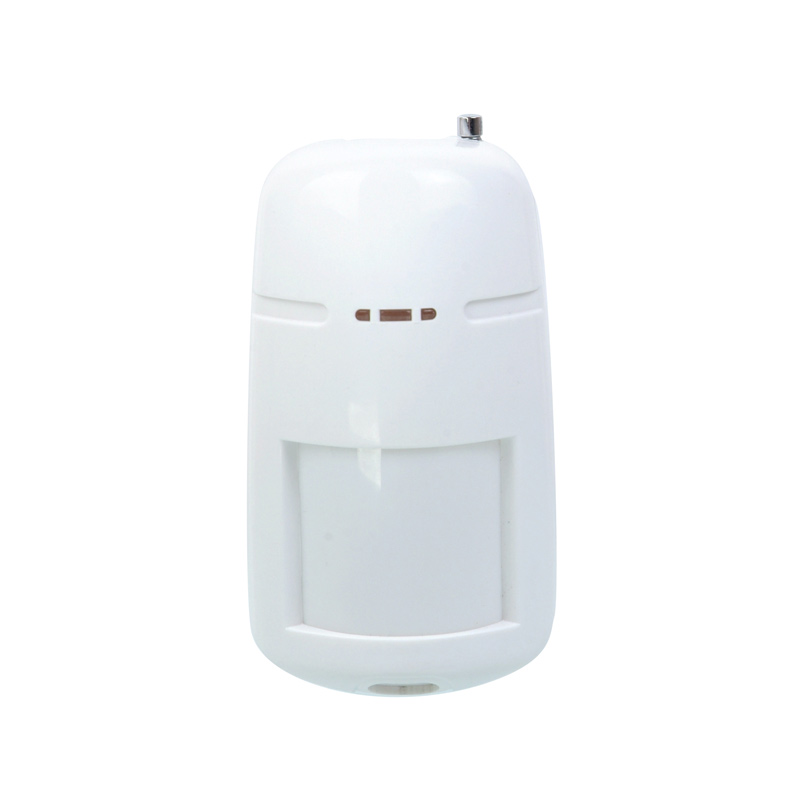

◎ Adopts self-designed MASK chip with DMT technology；
◎ Adopts MW & PIR technology, dual-processor improve the ability of signal processing；
◎ Low power consumption, built-in big capacity batteries；
◎ detection distance：12m@25℃
◎ detection angle：110°
Detection distance:12m
Transmission distance：20-30m
Input power：DC 12V
Battery voltage：DC 6V
Power consumption：20uA(static）10mA(alarm）
Pir part(as diagram)
Optical lens data
Pir area ：11*4 （typical）
Max. coverage：9 m*9m (35*35feet)/90°
Starting indication: indicator flashes for 30 seconds
Transmission frequency：433MHz
Circuit open for 4-5 seconds during alarm
Alarm indication: LED turns on for 4-5 seconds
Wired alarm output: solid relay, NC
Wireless alarm output :wireless alarm signal.
Installation:
Surface or corner installation, 1.8-2.4m high (6-8 feet)
Note: Base allows corner installation to the wall for 45°angle
Accessories: (for option)
Bracket 1: Surface installation twist bracket, down 30°and horizontal 45° adjustable
Bracket 2: Bracket 1 with wall corner adaptor
Bracket 3: Bracket 1 with ceiling adaptor
Operation environment:
Operation temperature:-10℃-50℃（14℉-122℉）
Storage temperature:-20℃-60℃（-4℉-140℉）
Anti white light: (indoor) above>9000LUX
Dimension: (L*W*H) :110*95*49mm
