◎Adopt self-designed MASK chip with DMT technology.
◎Digital Auto pulse count adjustable, Auto temperature compensation and energy analysis.
◎The latest optical design: cylindrical lens, 3D cylindrical optical system with high sensitivity.
◎Advanced pet-immunity recognition technology can tell the difference between the an intruder and a pet.
◎Excellent interference protection with advanced digital filter circuit.
◎Excellent EMI-/RFI-protection with multiple shielding technology.
◎Reliable performance with tamper supervised, low- voltage check and status report function.
◎Low power consumption , built-in big capacity batteries, special low power mode, ultra-long working hours.

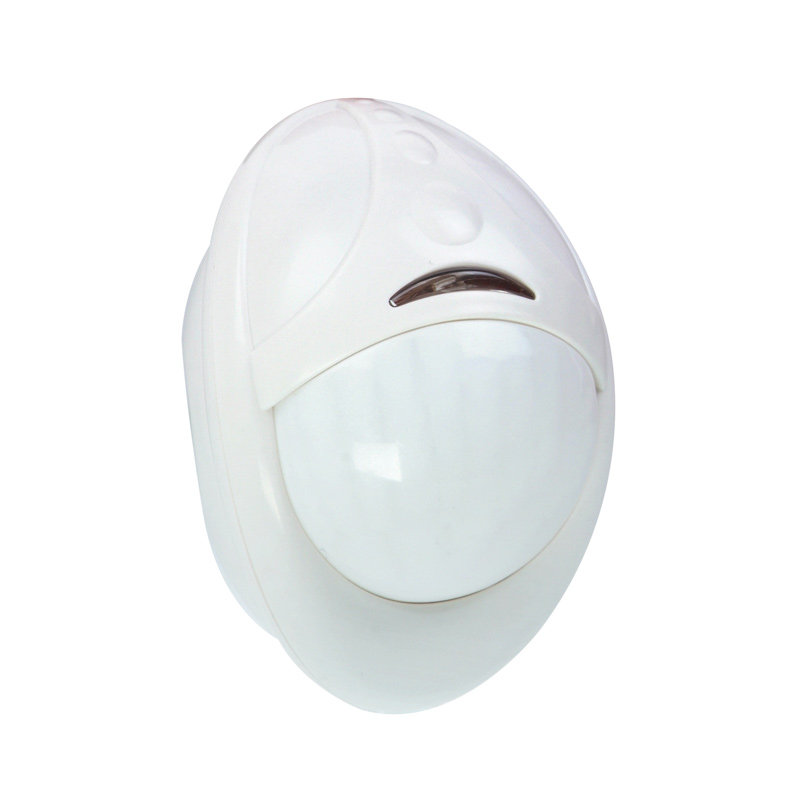

Model:MC-235R
Detection Range: 6M
Transmit Distance:20-30M
Input Voltage:3 VDC
Current Drain:About 30 μA (common) 5mA(alarm)
PIR Section:Lens Date
NO.of Curtain Beams：11+5 (Typical)
Max.Coverage：6*12m /90°
Tripping Indication:
lndicator lights for about 10 seconds
working frequency: 433MHz
Alarm indication:
The LED lighting for 4-5 second
Mount：
Surface or wall mount, height of 1.8 to 2.4 m
Environment:
Working Temperature: -10°C to 50°C(14°F to 122°F )
Storage Temperature :-20°C to 60°C (-4°F to 140°F)
Anti white light : ＞9 0 0 0 LUX
Dimension:H*W*D: 95*64*49 m m
