1. Popular elegant external design, unique decoration effect for indoor/outdoor application
2. Remote-controller setting and other setting available, easy for operation
3. Voice-prompt-operation, easy operation
4. Wired and wireless compatible, multi alarm methods available
5. 360?rotating for infrared detection area to avoid neglecting detection area, achieve real three-dimension detection.
6. High decibel spot siren for alarm enable it the function of frighten.
7. Avoid interference and damage, cutting, destroying and releasing can cause alarm.
8. Energy saving and control panel models for choice

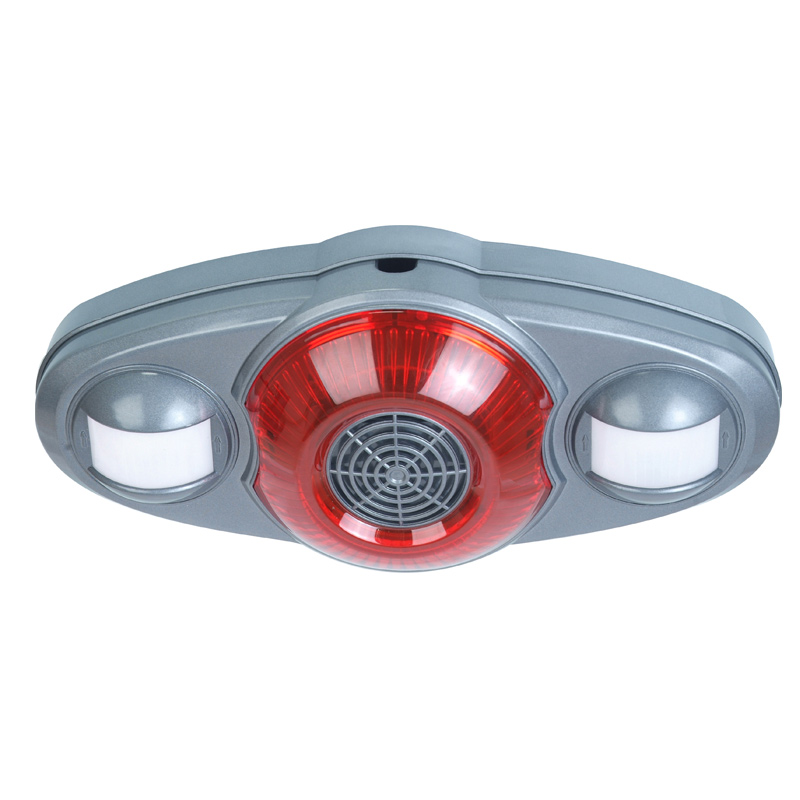

Model: DDP-988
Input power supply: 15VDC
Battery voltage: 12V/15V
Detection distance: 6M
Emission distance: 20-30ms
Receive distance: 20m
Control panel mode: 8mA,
flash light:700mA
Datasheet of optic lens
Infrared zones: 11*2
Max cover area: 6m*1m*2m / 90°
Alarm and dismantle proof:
Wireless alarm output: wireless signal emission
Wired alarm out put: solid relay, N.C or N.O above 100mA/30V
Emission frequency: 433MHz/ 430 MHz
Installation:
Installation height: not above 1.8m
ceiling mounting height: 2.0-5m
Bracket1:
Bracket installed in surface, it can be installed
on wall, wall corner
Working temperature: -10℃ to 50℃ (14℉ to 122 ℉)
Preserve temperature: -20℃ to 60℃ (-4℉ to 140 ℉)
Anti Light interference above 8000Lux
Anti EMI: Above 30m/v, 30MHz1 Ghz
Size: 245*115*40mm
