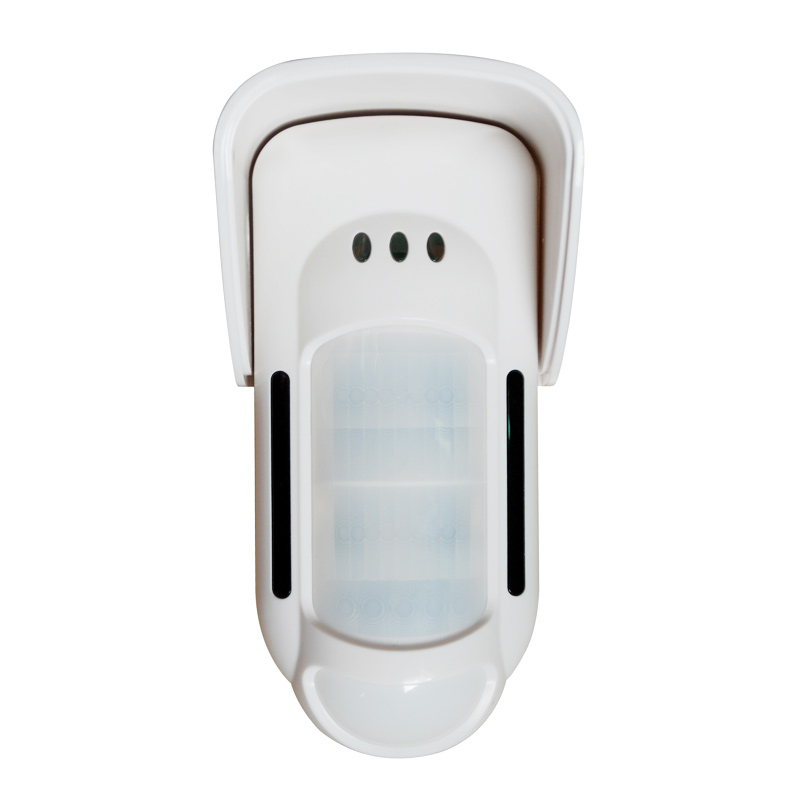

Quad infrared& Dual microwave complex intrusion detector


LOADING IMAGES
Model:FT-89
Introduction:
FT-89 series PIR&MW complex intrusion detector is the ideal motiondetector for industrial,commercial, residence and so on, can be able to work in the most difficult environment conditions and where high security is required while maintaining. unprecedented immunity to false alarms,also can be work out door because good water-proof,FT-89 will inform user automatically if it be damaged or can not work normally.FT-89 series adopt precise Fresnel lens lens technology produce 3D protected area with high energy receiving rate and high sensitivity but no false alarm; combining four sources
◎ Quad PIR digital interaction technology ;
◎ Adopts random dynamic time segmentation technology;
◎ Own self-check function;
◎ Rotation design, Water-proof structure design;
◎ Avoid detection dead angle;
◎ 4 initiative IR channels, anti-masking and lens blurry;
◎ Detection distance:9m/12m/18m
◎ Detection angle:30°/90°/120°
FT-89(wired)

Detection Range:15m/25℃
Input Voltage:9to16VDC
current consumption:direct current about 65mA (Lens Date)

optical lens date(RL300)
IR area:(11+11+9)*2-62   (classic)
max covering area: (50*50 foot)/90
start indication: three color light take turn to flashing last for 60s

alarm, anti-tamper and anti-shield
alarm output:fixed replay, NO and NC, more than 100mA/30V,--10 interior  obstruct
anti-tamper interface:NC, 50mA/30VDC
anti-shield output: fixed replay, NC, more than 100mA/30V,--10Ω
