◎ Adopts energy-saving logic processing(DMF), Advanced anti- cloak technology to recognize the intruder with cloak
◎ Random dynamic time segmentation(DMT) technology, pet-immunity up to 25kg
◎ Quad infrared FRESNEL lens, with downward vision window avoid detecting dead angle
◎ Detection distance: 12m @ 25℃
◎ Detection angle:110°

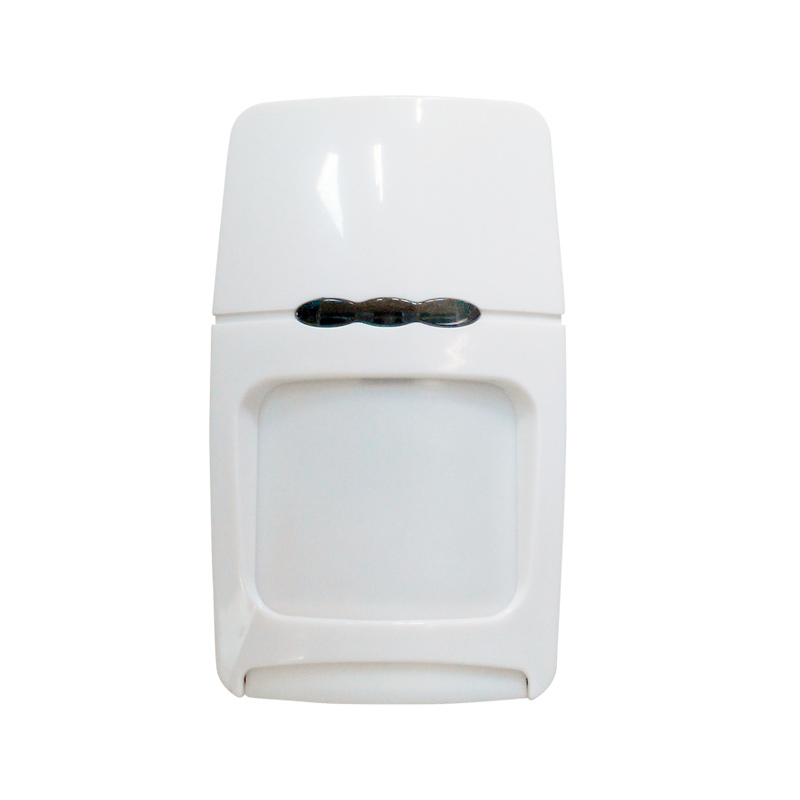

Model:DT-7425DMT
Detection Range:11M
Input Voltage:9 to 16V DC
Current Drain: DC12V @ 9mA
PIR Section
Lens Data
Infrared area :9+5+3
Max Coverage 11m*11m(36feet*36feet)/90
ALARM and TAMPER
Alarm Output:
Solid-state relay, N.C. less then 100mA/30V,
10Ω internal resistance:
Tamper interface: N.C. 50mA/30V DC
less then 100mA/30V,
10Ω internal resistance
Alarm indication
Yellow- MW
Green-PIR
Red - Alarm
Mounting
Surface or corner, at the height of 2.0to 2.4m(6.5~7.8feet)
Note: Base allows single-sided corner mount at 45 to wall
operation condition
Operating Temperature: -10 C to 50 C(14 F to 122 F )
Storage Temperature :-20 C to 60 C (-4 F to 40 F)
Anti white light resistance: 9000 LUX (indoor)
Size:(L*W*H):125*74*43mm
