◎ Adopts energy-saving logic processing(DMF), Advanced anti- cloak technology to recognize the intruder with cloak
◎ Random dynamic time segmentation(DMT) technology, pet-immunity up to 25kg
◎ Novelty and useful walking test mode, Microwave and Infrared respectively test.
◎ Detection distance: 12m @ 25℃
◎ Detection angle:110°

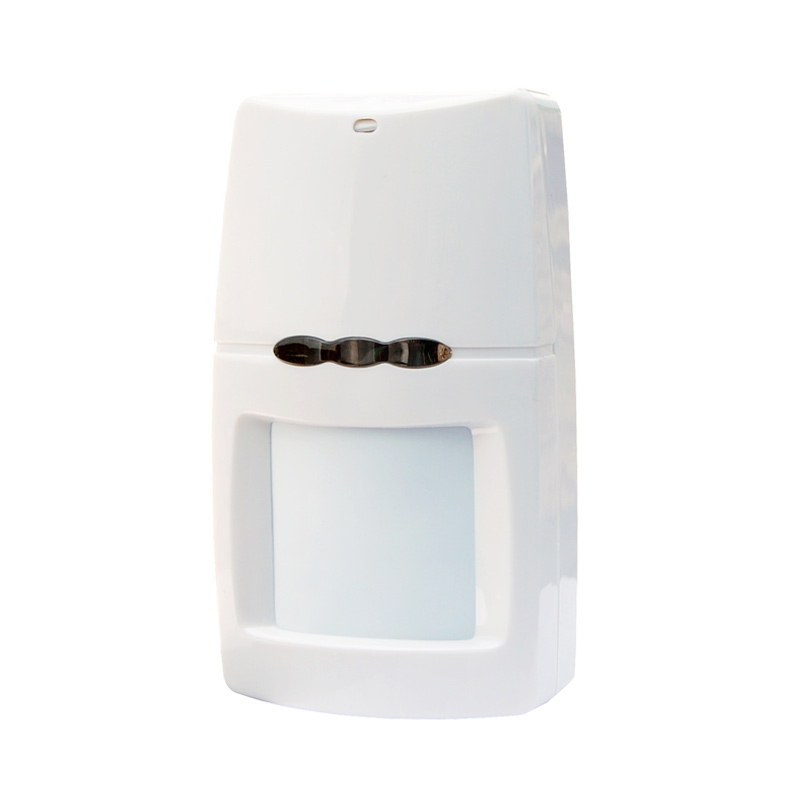

Model:DT-700DMT
Maximum detection distance: 10~12m/25℃
Input voltage: DC9-16V
Working current: Normally closed mode,
the normal operating current ≤ 30mA
Alarm current ≤ 18mA
Infrared section (as shown at right)
Optical lens data sheet
Infrared area: 9+5+3 (typical)
Maximum coverage: 11m * 11m (36 * 36 feet) / 90 °
Alarm and tamper switch
Alarm output: Solid relay, NC.
less 100mA/30V,--10Ω inernal impedence
Tamper switch: NC, 50mA/30VDC
Alarm indication:
When the yellow LED is on, the MW triggers the alarm
When the green LED is on, the infrared triggers the alarm
Detector alarm and alarm output when red LED is on
Power self-test time:
30 seconds, self-test when the three LED flashes
one by one.
Installation:
Wall or corner installation, the installation height of
2.0-2.4 meters (6-8 feet) from the ground
Note: The single side of the base to wall at 45 degree
is allowed.
Working environment
Working temperature: -10 ℃ ~+50 ℃ (14 ℉-122 ℉)
Storage: -20 ℃ -60 ℃ (-4 ℉-140 ℉)
Anti-white light(indoor): ＞ 9000LUX
Anti-emi: 30V /m, 10MHz-1000MHz
Size :( L * W * H) 124 * 71 * 45 mm
