◎ Adopts dual Pyroelectric infrared sensor and plane antenna MW Emitter/receiver.
◎ Adopts self-designed MASK chip with DMT technology.
◎ Digital dual Auto temperature compensation, excellent false alarm prevention.
◎ Excellent interference protection with advanced digital filter circuit.
◎ Excellent EMI-/RFI-interference protection with multiple shielding technology.
◎ Stable performance with tamper supervised, low-voltage check and status report function.
◎ Low power consumption , built-in big capacity battery, special low-power mode, ultra-long working hours.
◎ Elegant , novelty and decorative design.

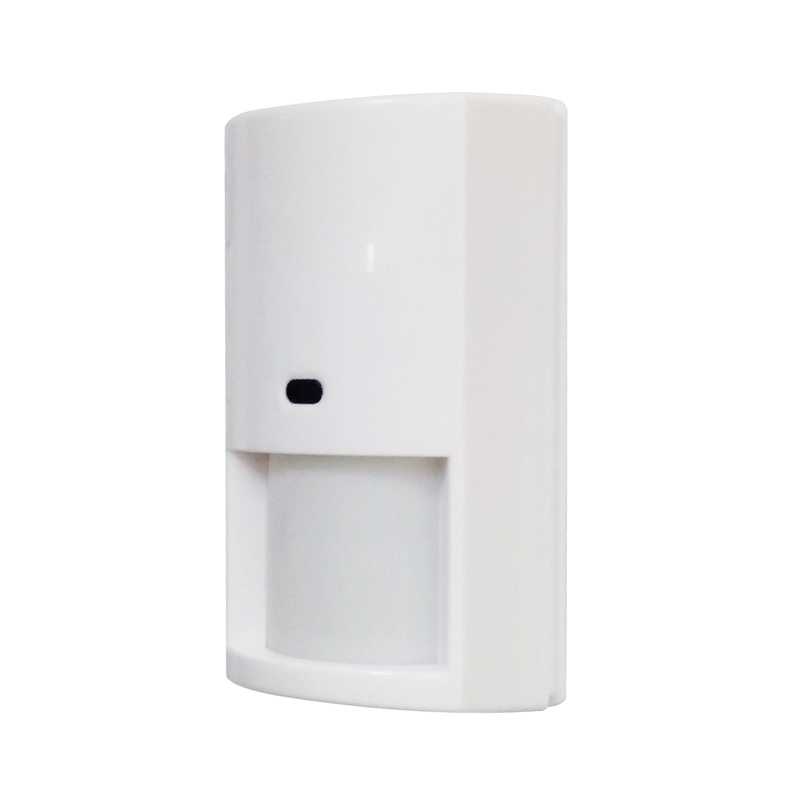

Model: DT-8435
Detect distance: 11m/25
Input voltage: 9-16VDC
Current consumption: DV12V@50Ma
PIR part(as picture shows)
Lens:
PIR:9-5+3(typical)
Max detect area:11*11m(36*36feet)/90°
Alarm and anti-tamper
Alarm output: solid state relay,
N.C type
Less than 100Ma/30v,--10Ω Internal
impedance
Anti-tamper connector: N.C type,
50Ma/30VDC
Less than 100Ma/30v,--10Ω Internal
impedance
Led: Yellow for Microwave
Green for PIR
Red for alarming
Installation:
Wall mount 2.0-2.4meters
Note: bracket can install angle
Work temperature:-10℃-50℃(14°F-122°F)
Storage temperature: -20℃-60℃(-4°F-140°F)
Anti white light (indoor): >9000LUX
Anti-radiation interference:30V/M, 10MHz-1000MHz
Measurement:125*74*43mm
This device Conformity CE 1999/5/EC and 9 March
1999 wireless radio and Telecommunication terminal
equipment meeting request. Also fit the request of
Canada RSS-210.
