◎ Syncretize MW& PIR technology, double processors improve signal processing ability;
◎ Advanced anti-cloak technology to recognize the intruder with cloak;
◎ Random dynamic time segmentation technology, pet-immunity up to 25kg;
◎ Downward vision window avoid detecting dead angle;
◎ Detection distance：12m@25℃
◎ Detection angle：110°

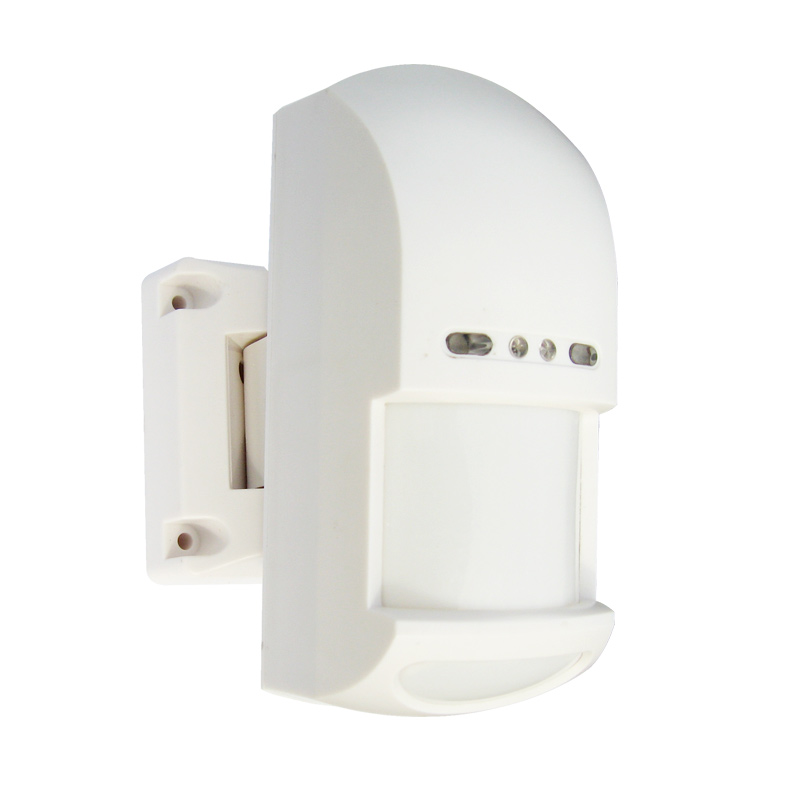

product name：ODT-8350 DMT
input voltage：12 VDC
most current ：62mA
meeting point rating：3W、125mA
most current、25 VDC
most voltage(DC resistent load);
sharing with the relay use the "C" down-lead's 4.7Ω、1/2W resistant to protect
Remark：Please do not use on the load of capacitance or inductance
temperature rang：-10°C to +50°C.
MW frequency ：10.525GHz
covering range：12m*12m
