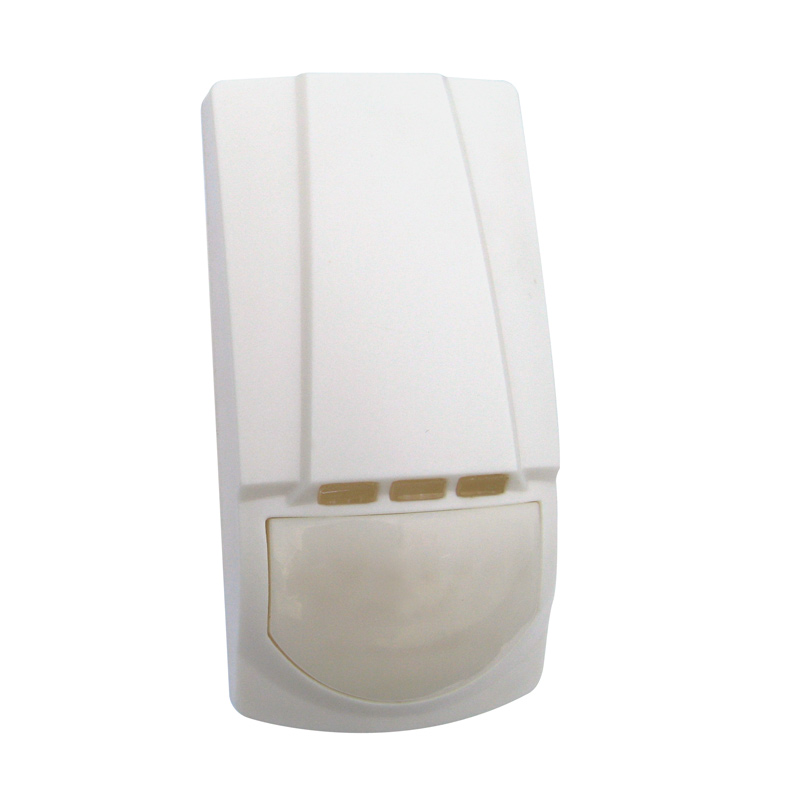

Quad Infrared& MW complex intrusion detector

LOADING IMAGES

Model：DT-800

Introduction：

DT-800 Intelligent PIR & MW Intrusion Detector is a digital micro-processing dual-tech detector adopting the technology of DMFTM (Digital Memory Focus), DMTTM (Dynamic Matrix Time). The PIR parts adopt nice Frens lens to increase the effect of energy receiving. The MW parts adopt advanced plane antenna microwave transmission, which has increased the control of MW detection range. In the way, high sensitivity can be reached from the distance of 2M(3.2 feet) to 11M(36 feet).

Function
Specification

◎ Random dynamic time segmentation(DMT) technology（DT-800DMT）
◎ Adopts energy-saving logic processing(DMF), Advanced anti- cloak technology to recognize the intruder with cloak
◎ Syncretize MW& PIR technology, double processors improve signal processing ability
◎ Completely protected and sealed optical lens
◎ Detection distance: 12m @ 25℃
◎ Detection angle:110°

Model	DT-800	DT-800DMF	DT-800DMT
Detection	Quad infrared+MW	Quad infrared+MW	Quad infrared+MW
MW frequency	10.525GHz	10.525GHz	10.525GHz
Working voltage	9～16VDC	9～16VDC	9～16VDC
Working current	8mA～25mA	8mA～25mA	8mA～25mA
Automatic Temperature Compensation	★	★	★
pulse counting adjustable	★	★	★
Status report	★	★	★
tamper alarm	★	★	★
Alarm output	N.C，50mA/30VDC	N.C，50mA/30VDC	N.C，50mA/30VDC
tamper interface	N.C，50mA/30VDC	N.C，50mA/30VDC	N.C，50mA/30VDC
pet-immunity		25kg	25kg
anti- cloak		Yes
Anti-white light	>9000LUX	>9000LUX	>9000LUX
Installation mode	Wall-mounted	Wall-mounted	Wall-mounted
Installation height	1.8m-2.4m	1.8m-2.4m	1.8m-2.4m
Dimension
