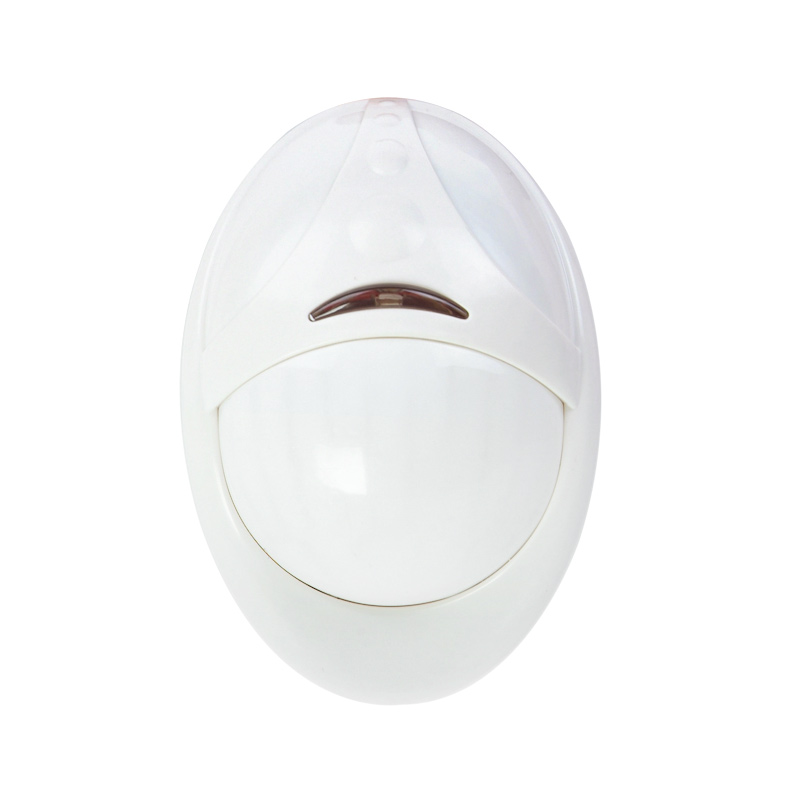

Quad Infrared intrusion detector

LOADING IMAGES

Model：MC-235

Introduction：

MC-235 is a passive infrared intrusion detector, used to detect accidental or malicious intrusion, to meet the general needs of protection. Designed for small size white round streamline shape, can be installed on the wall or ceiling, the ideal installation Height is 2.2m (7'2 ") from the ground. The protective area can be protected from dead ends, and the sensitivity can be set to suit the installation environment. This product has built-in tamper switch to prevent unauthorized disassembly. This product can be widely applied to the family, shops, banks, offices, warehouses, garage

Function
Specification

◎ Random dynamic time segmentation(DMT) technology（MC-235DMT）.
◎ Digital pulse adjustable.
◎ Columnar lens, with strong sensitivity 3D cylindrical optical system.
◎ Detection distance：6m@25℃
◎ Detection angle：110°

Model	MC-235	MC-235DMT
Detection	Quad Infrared+Artificial Intelligence	Quad Infrared+Artificial Intelligence
Working voltage	9～16VDC	9～16VD
Current consumption	8mA～25mA	8mA～25mA
Automatic temperature compensation	★	★
Pulse optional	★	★
Status report	★	★
Tamper alarm	★	★
Alarm output	NC，100mA/30VDC	NC，100mA/30VDC
Tamper interface	NC，50mA/30VDC	NC，50mA/30VDC
Pet-immunity		25kg
Anti-white light	>8000LUX	>8000LUX
installation mode	Wall-mounted	Wall-mounted
installation height	1.8m-2.4m	1.8m-2.4m
Dimension	94.5×63.5×49mm	94.5×63.5×49mm
