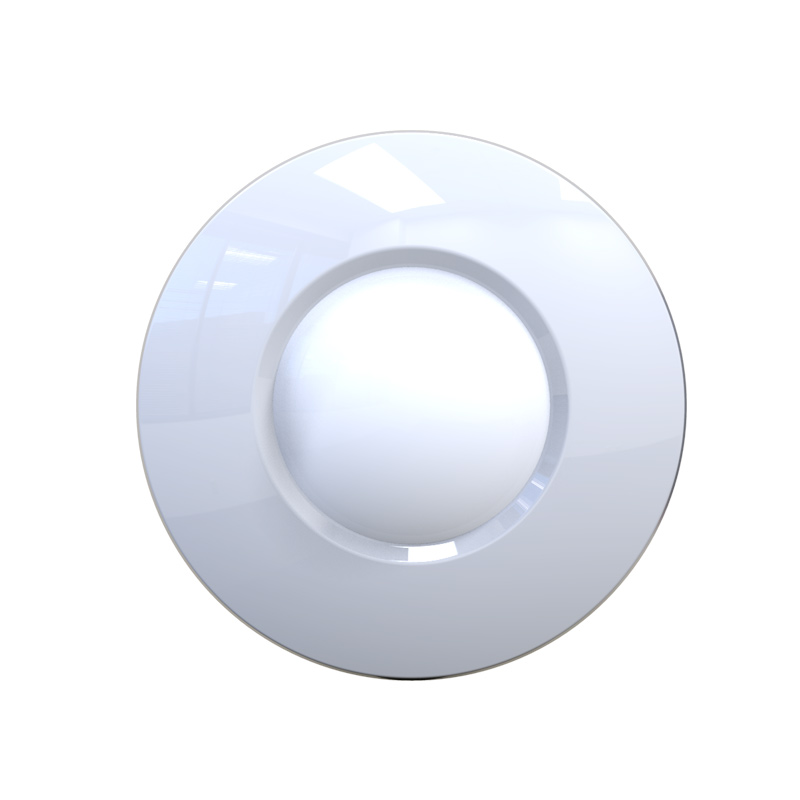

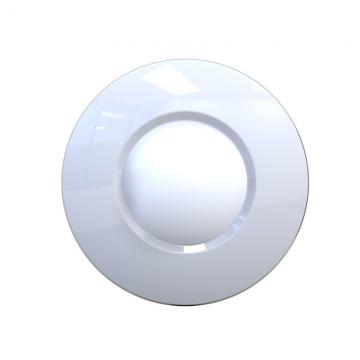

Ceiling mounting complex Infrared & MW intrusion detecto

LOADING IMAGES

Model：DT-7380

Introduction：

MC -7380 siries is an instrusion detctor with ebergy accumulation processing and dynamic Metrixing time chip.Its built-in Fresnel increases the energy receiving effiency,and the sensitivity is high without false alarm, furthermore,it can distinguish which factor may cause false alarm . Optional impluse insures suitable for indoor withdigital mirco-processing, Advance true motion recognition technology enables recognize the inturder from other interfering factors.Multi-mode and capability optional,which fit forvarious indoor environment and solve all kinds of interference,prevent fal

Function
Specification

◎ Random dynamic time segmentation(DMT) technology, pet immunity up to 25kg;
◎ Adopts energy-saving logic processing(DMF), Advanced anti- cloak technology to recognize the intruder with cloak;
◎ Adopts dual infrared sensor and plane antenna microwave transmitter/receiver;
◎ Dual curtain style Fresnel lens,fit for ceiling mount;
◎ Dynamic LED display;
◎ Multiple shielding technology;
◎ Detection distance：Diameter 10m@25℃
◎ Detection angle：360°

Model	DT-7380	DT-7380DMF	DT-7380DMT
Detection	Quad infrared
MW frequency	10.525GHz
Working voltage	12VDC
Consumption current	25mA
Auto temperature compensation	★
Self-testing	★
Sensitivity adjustable	★
Pulse option	★
Tamper function	★
Pet immunity		25kg	25kg
Anti-Camouflage		★
Alarm output	Solid Relay,Normally closed,100mA/30VDC
Tamper interface	Normally closed
Anti-white light	>9000LUX
Installation	ceiling mount
Installation height	2.4m~4.8m
Dimension	Ф110×40mm
