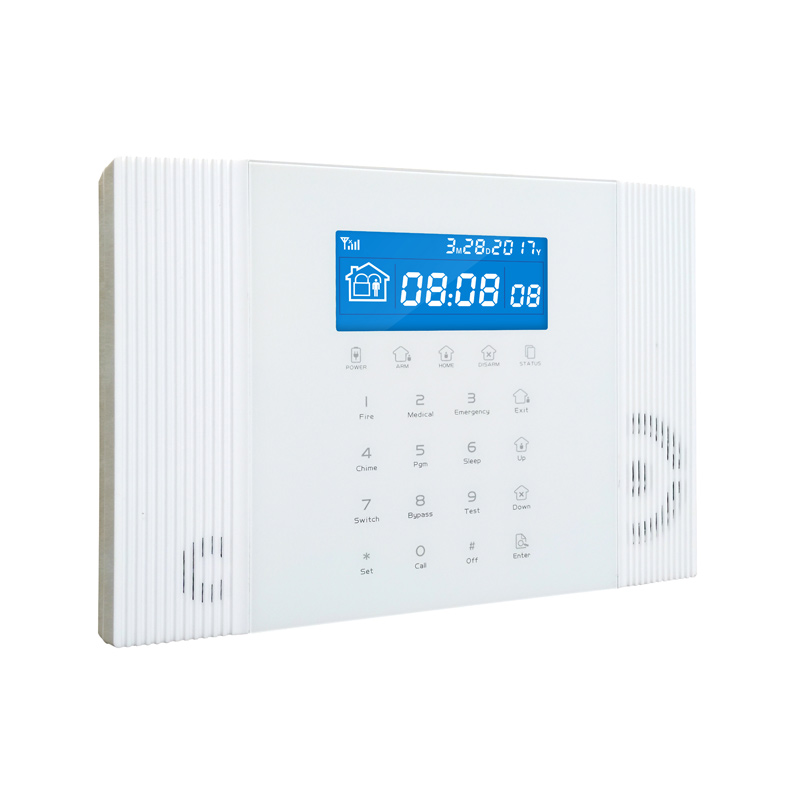

◎ Full touch screen glass board panel.
◎ Speech indication for all operation steps, English LCD screen, Easy to operate than before.
◎ 8 wired 32 wireless zone, 32 BUS zone,210 zone total.
◎ 4 subsystem, bidirectional wireless communication.
◎ Build-in 2G/4G wireless communication module, support GPRS/4G data transmission.
◎ 32 electric appliance control, electric appliance switch timely control.
◎ Muti-Code Non-repeat holographic code.
◎ Build-in songs doorbell and sound siren.
◎ Remote control by telephone,10s address recording, arm/disarm timely and freely.
◎ Wireless equipment status checking, wireless alarm linkage.
◎ Telephone line cut alarm.
◎ Reminder windows and doors is not closed.
◎ Build-in 9.6V/1000mAh rechargeable battery.
◎ Power supply: 15V/2000mA
◎ Built in rechargeable battery:11.1V/1000mah
◎ System static current: <50mA(exclude wireless detector)
◎ System alarming current: <300mA(exclude wireless high siren current)
◎ System maximum output current: ≤100mA(supply wireless detector)
◎ Frequency:433MHz/868MHz
◎ Signal transmit distance: 100 to 150 meters (open area)
◎ The method of alarming dial: DTMF GSM or GPRS
◎ Communication protocol with CMS: Ademco Contact ID
◎ DTMF dial frequency variation:,1.5%
◎ Recording time:15s
