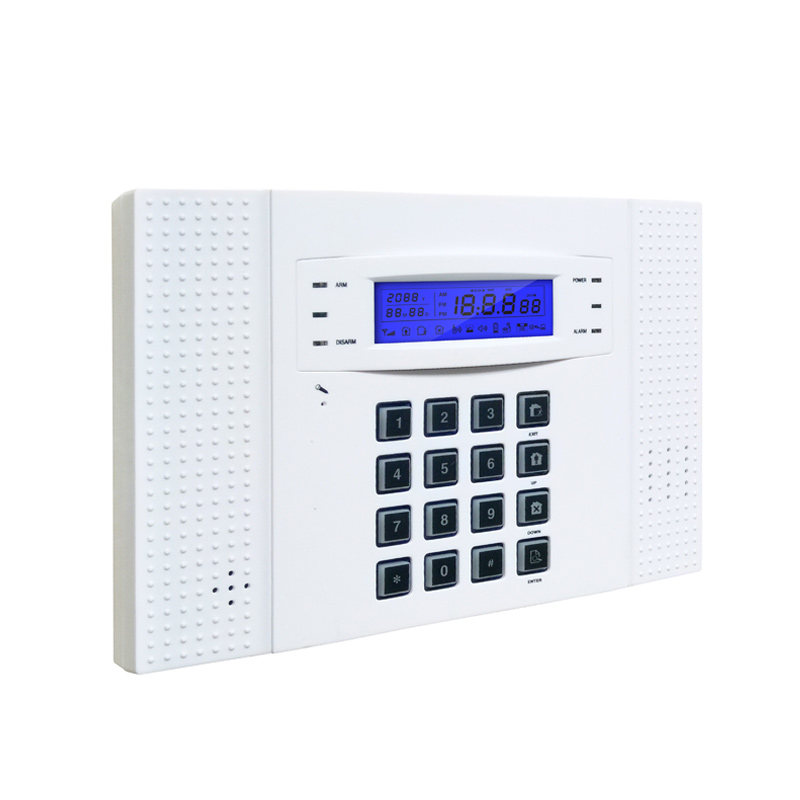

PSTN+2G/4G Network Alarm System


LOADING IMAGES
Model:ST-IV
Introduction:
Intelligent Home Alarm System With 2G/4G/PSTN Dual Network
◎ Voice indication for operation, LCD display,Easy to  operate than before.
◎ 8 wired 32 wireless zone, 32 BUS zone,210 zone total.
◎ 4 subsystem, bidirectional wireless communication.
◎ support 2G/4G and TCP/IP protocol,network alarm settings.
◎ 32 electric appliance control, electric appliance switch timely control.
◎ Non-repeat holographic code.
◎ Build-in songs doorbell and sound siren.
◎ Remote control by telephone,10s address recording, arm/disarm timely and freely.
◎ Wireless equipment status checking, wireless alarm linkage.
◎ Telephone line cut alarm.
◎ Indication if door and window do not be closed.
◎ Build-in 10XAA rechargeable battery.
◎ Support CID transmission protocol.
◎ Support 4digit or 6 digit user ID code.
◎ Can set telephone line checking cut transfer to GSM transmission automatically.
◎ Can set 2 Center Monitoring Station phone,4 alarm user phone.

Art No.: ST-IV
Dimensions 225*159*21MM
Housing Materials ABS Plastic
Installation Location Indoor Use Wall Mounted
LCD Display Graphic display, status light
Menu Voice Guidance YES
Kit Weight 1.40KG
Kit Accessories Included
  1*Wireless PIR Detector
  1*Wireless Door Sensor
  2*Wireless Remote Controller
System Network 2G/4G And PSTN
Number Of Users 16
Number Of Wired Zones 8
Number Of Bus Zones NO

Number Of Wireless Remotes Or

Wireless Keypad Controls

8
Number Of Wired Keypad 0
Number Of Wireless Zones 32
Number Of Voice Phones 4
Number Of Wireless Doorbell 1
Number Of Wireless Switch 16CH
Number Of Wireless Siren

Dual Way Siren *1

One Way Siren No Limited

Outputs 1 PGM Port
2G/4G Antenna External 2G/4G Antenna
Event Log Inquiry 150
Radio Frequency 433MHz or 868MHz
Intergrated Siren YES(85Db@1M)
Backup Battery Type Standby 6h(11.1V/1000mah)
Max Receiving Range 100M
Max Sending Range 100M
Power Supply Unit 15V/2A
Protocols Ademco Contact ID
Tamper Monitoring YES
Mobile Client

S-Alarm


WebIE NO
Meian CMS Server: wode110.com
Tel-Line CMS 2 CMS
Certifications CE/FCC/ROHS
