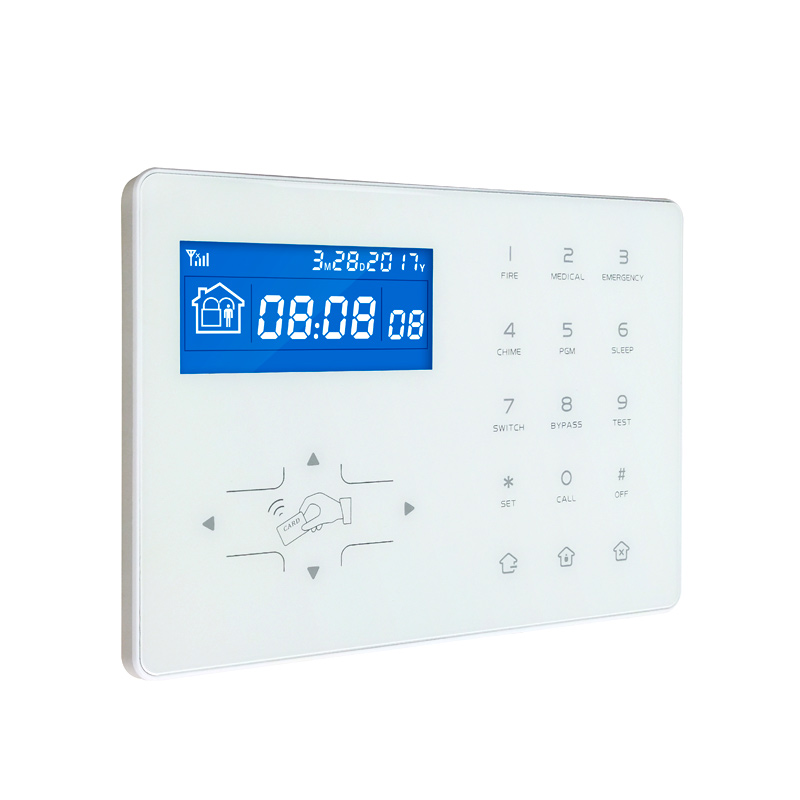

◎ Full touch screen glass board panel.
◎ Speech indication for all operation steps, English LCD screen.
◎ 8 electric appliance control,1 wireless siren, 1 wireless doorbell, built-in sound siren.
◎ 2 Center Monitoring Station phone,6 alarm user phone, Contact ID CSM connection protocol.
◎ Support two-way communication, enable work with 8 dual-way wired keypad, 8 dual-way wireless keypad, 8 dual-way remote.
◎ Support GPRS/4G protocol, network alarm settings.
◎ Built-in video module, can view video output on line.
◎ Wireless/wired zone status real time monitoring. Wireless detector status real time monitoring
◎ Tel-line off alarm and Neighbor phone transmit alarm.
◎ 4 group timing arm/disarm setting. Remotely arm, disarm, listen-in function.
◎ Arm/disarm status resume after power off, can choose arm/disarm message report to CMS freely.
◎ 64 event log and inquiry, 10s for recording.
◎ Alarm wireless linkage.
◎ Wireless frequency: 433MHz/868MHz
◎ Power supply: 15V/2000mA
◎ Built in rechargeable battery:11.1V/1000mah
◎ System static current: <50mA(exclude wireless detector)
◎ System alarming current: <300mA(exclude wireless high siren current)
◎ System maximum output current: ≤100mA(supply wireless detector)
◎ Frequency:433MHz/868MHz
◎ Signal transmit distance: 100 to 150 meters (open area)
◎ The method of alarming dial: DTMF GSM or GPRS
◎ Communication protocol with CMS: Ademco Contact ID
◎ DTMF dial frequency variation:,1.5%
◎ Recording time:15s
