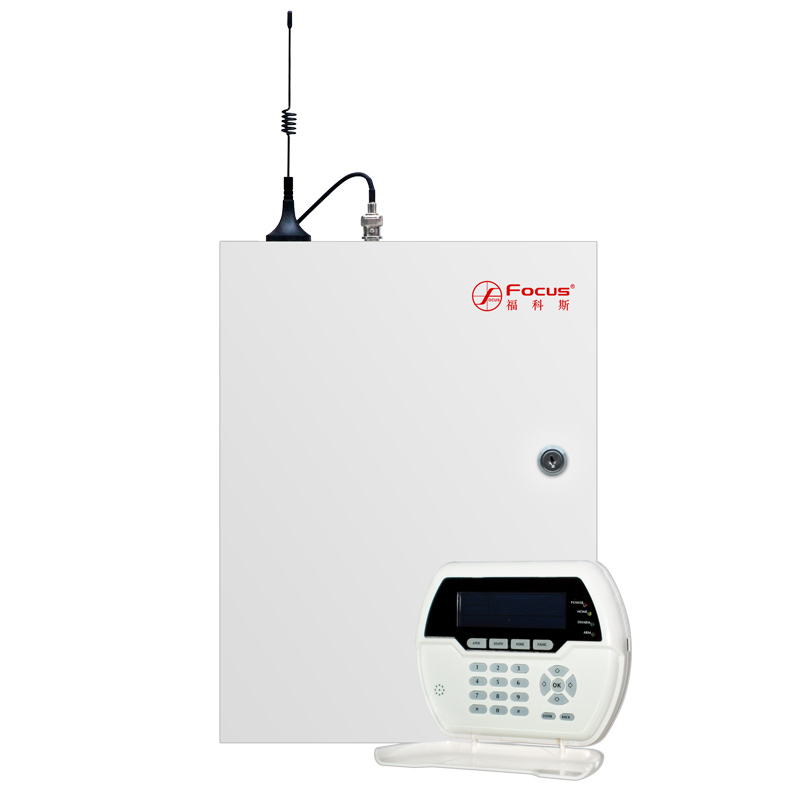

TCP/IP 2G/4G PSTN Burglar Alarm Control System

LOADING IMAGES

Model：FC-7688

Introduction：

FC-7668 is a intelligent alarm control system which in tegrated with burglar proof, fireproof, gas leak proof. it is compatible with wired and wireless alarm mode. it use advanced coding techniques of BUS zone and multi-bit random code hopping techniques in security and reliability. to avoid false alarm and interference effectively. adopt SMS, 2G/4G, high-speed Contact ID alarm transmission mode. this system is wirdely used in residence community, villa, shops, offices.

Function
Specification

◎ Chinese&English operation menu and voice prompt.
◎ 8 tamper-checking wired zone,32 wireless zone,88 BUS zone(with tamper-checking single zone module)
◎ 8 programmable access wireless remote, 8 programmable access keypad, 32 wireless appliance switch,8 wireless siren.
◎ Support SD card update application software.
◎ Support 2G/4G, TCP/IP, networking alarm setting.
◎ Can extend GPRS wireless communication module, support GPRS data transmission.
◎ Can extend programmable Relay module,serial module.
◎ Can set 8 private telephone numbers. ◎ Remote voice prompt operation.
◎ Built-in electronic clock,can realize 4 groups timing arm/disarm everyday, 2 groups timing alarm clock.
◎ AC off,wireless/wired detectors trouble reporting.
◎ Can set self-checking time report to control panel automatically.
◎ 512 loop event record.

Model	FC-7668
External AC Power supply	185~230V AC
Output	13V AC/ 3A
Backup power supply Duration	16 hours
Backup Battery	12V/7 Ah, (rechargeable lithium battery)
The method of alarming dial	Telephone alarm and 2G/4G alarm
DTMF dial frequency variation	<1.5%
Communication protocol with CMS	Ademco contact ID
Frequency	433/868MHz
Signal transmit distance	100 to 120 meters(open area)
Operation temperature	0°C-45°C(32F-120F)
Storage temperature range	-20°C-60°C(-4F-140F)
Relative humidity	85% at 30 °C(86F)
