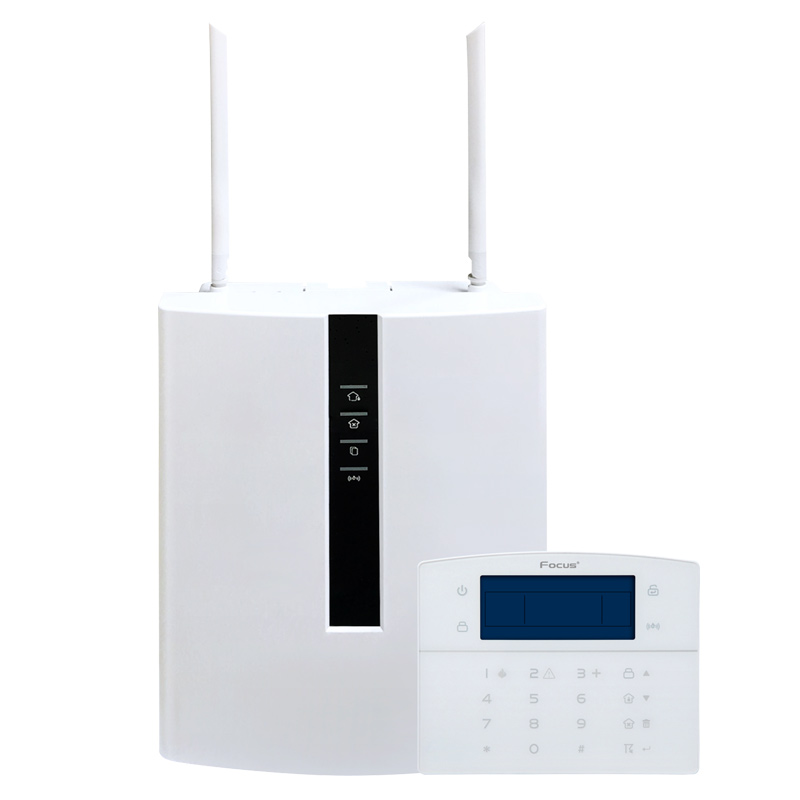

TCP/IP 2G/4G Alarm Control System


LOADING IMAGES
Model:FC-7640 Plus
Introduction:
TCP/IP 2G/4G Free APP Control With Wifi IPCam Monitoring Control
◎ Chinese&English operation menu and voice prompt.
◎ 8 tamper-checking wired zone,32 wireless zone,88 BUS zone(with tamper-checking single zone module)
◎ 8 programmable access wireless remote, 8 programmable access keypad, 32 wireless appliance switch,8 wireless siren.
◎ Support SD card update application software.
◎ Support 2G/4G, TCP/IP, networking alarm setting.
◎ Can extend GPRS wireless communication module, support GPRS data transmission.
◎ Can extend programmable Relay module,serial module.
◎ Can set 8 private telephone numbers. ◎ Remote voice prompt operation.
◎ Built-in electronic clock,can realize 4 groups timing arm/disarm everyday, 2 groups timing alarm clock.
◎ AC off,wireless/wired detectors trouble reporting.
◎ Can set self-checking time report to control panel automatically.
◎ 512 loop event record.
Art No.: FC-7640 Plus
Dimensions 265*220*80MM
Housing Materials Metal Box
Installation Location Indoor Use Wall Mounted
LCD Size NO
Menu Voice Guidance YES
Kit Weight 2.14KG(Without Keypad)
Kit Accessories Included
  FC-7640 Panel*1
  F-7640 LCD *1
System Network TCP/IP 2G/4G
Number Of Users 16
Number Of Wired Zones 8
Number Of Bus Zones NO

Number Of Wireless Remotes Or

Wireless Keypad Controls

8
Number Of Wired Keypad 8
Number Of Wireless Zones 32
Number Of Voice Phones 4
Number Of Wireless Doorbell 1
Number Of Wireless Switch 16CH
Number Of Wireless Siren

Dual Way Siren *1

One Way Siren No Limited

Outputs 1 PGM Port
2G/4G Antenna External 2G/4G Antenna
Event Log Inquiry 512
Radio Frequency 433MHz or 868MHz
Intergrated Siren YES(85Db@1M)
Backup Battery Type 12V DC, 7AH Lead Acid Battery
Max Receiving Range 100M
Max Sending Range 100M
Power Supply Unit 15V/2A
Protocols Ademco Contact ID
Tamper Monitoring YES
Mobile Client

ST-Panel

http://www.meiantech.com/en/Support/download/


WebIE 192.168.1.81 (Default Setting)
Meian CMS Server: wode110.com
Tel-Line CMS 2 CMS
Certifications CE/FCC/ROHS
